The integration of solar energy into architectural design has paved the way for innovative solutions like Building-Integrated Photovoltaics (BIPV). This technology not only harnesses renewable energy but also enhances the aesthetics of modern buildings. In this detailed blog, we will explore the concept of BIPV, its benefits, applications, and the future of sustainable building design.

What is Building-Integrated Photovoltaics (BIPV)?

Building-integrated photovoltaics, are solar components that not only produce electricity but also provide traditional purposes including thermal insulation, weatherproofing, and architectural purposes. Throughout their existence, these multifunctional active building components can achieve a better ecological and economic balance than traditional construction parts. They also give building owners the chance to adhere to ever stricter energy-related regulations. Visually pleasing power systems can be integrated into both urban and rural landscapes and significantly contribute to the energy transition when they have PV modules integrated into their roofs and façades through architectural integration. For bespoke BIPV components, it is advantageous to utilize a local manufacturer close to the end user.

How BIPV Works: A Technological Overview

A PV module serves as the fundamental building block of BIPV technology. A module is made up of constructed solar cells, and an array tailored to a particular site is created by wiring modules together. Solar energy is captured by BIPV systems and transformed into heat and electricity. Direct current (DC) appliances can be powered by the electricity produced by BIPV, or it can be stored in batteries.

The output of PV systems is either connected to inverters or transformed into alternating current (AC) electricity for use in other applications or a connection to the utility grid.A balance-of-system (BOS) is a term used to describe the additional parts of the BIPV system, which include the inverter, switches, controls, meters, power conditioning equipment, wiring, supporting structure, and storage components.

Benefits of Building-Integrated Photovoltaics

1. Energy Efficiency

One of the most significant benefits of BIPV systems is their ability to generate clean, renewable energy directly from the building’s structure. By integrating photovoltaic cells into roofs, facades, windows, and other elements, buildings can produce electricity to power their operations, reducing the need for external energy sources and lowering overall energy consumption.

The PV panels used should have high energy conversion efficiency to optimize the energy output with limited area.
The panels should be oriented and titled in a way to ensure maximum exposure to solar radiation.
Effective thermal management is necessary to dissipate the heat generated by the panels for the longevity and comfort of the building occupants.

2. Aesthetic Integration

Unlike traditional solar panels, which can be visually disruptive, BIPV materials are incorporated directly into the building’s architecture.

Design Flexibility: BIPV can be customized in terms of color, shape, and texture, allowing architects to create visually appealing structures that maintain aesthetic integrity.
Enhances Property Value: Well-integrated BIPV can increase property value by improving the building’s modern appearance and energy efficiency.

3. Cost-Effectiveness

While the initial installation of BIPV may be higher than standard photovoltaic systems, the long-term cost benefits are considerable. By replacing traditional building materials with photovoltaic materials, developers can save on construction costs while generating energy for the building.

Reduced Material Costs: BIPV components serve dual functions as both construction materials and energy generators, offsetting the need for conventional materials like roof tiles or facade cladding.
Long-Term Energy Savings: Over time, the energy savings from BIPV can lead to a significant return on investment, especially for commercial and industrial buildings.

4. Environmental Impact

BIPV systems help reduce the carbon footprint of buildings by generating renewable energy on-site. This decreases the reliance on fossil fuels and supports global efforts to combat climate change.

Reduced Greenhouse Gas Emissions: By producing clean energy, BIPV helps lower the building’s carbon emissions, contributing to a more sustainable future.
Compliance with Green Building Standards: Many BIPV systems enable buildings to meet or exceed green building certifications such as LEED, BREEAM, and other sustainability standards.

5. Space Efficiency

One of the primary challenges with traditional solar panel installations is the need for dedicated rooftop space. With BIPV, the building envelope itself becomes the solar energy generator, maximizing available surface areas like walls, windows, and skylights.

Optimal Use of Vertical Space: In urban areas where rooftop space is limited, BIPV facades provide an efficient solution for generating solar power from vertical surfaces.
Minimal Visual Impact: Since BIPV elements are integrated into the building’s design, they are less obtrusive than conventional solar panels, making them ideal for historic or aesthetically sensitive sites.

6. Durability and Functionality

BIPV components are designed to withstand environmental factors, such as wind, rain, snow, and extreme temperatures. In addition to their energy-generating capabilities, they function as conventional building materials, providing weather resistance and structural support.

Protection from Environmental Elements: BIPV systems not only produce energy but also protect the building from external weather conditions, enhancing the durability of the structure.
Multifunctionality: These systems serve multiple purposes—acting as roofing, cladding, or glazing while simultaneously producing electricity.

7. Energy Independence

BIPV offers building owners the opportunity to achieve energy independence by generating power directly from the building’s structure. This can be especially important in areas with unreliable grid infrastructure or in remote locations.

Net-Zero or Positive Energy Buildings: BIPV can help buildings achieve net-zero energy status, where they generate as much energy as they consume. In some cases, buildings can even become energy-positive, producing excess energy that can be fed back into the grid.
On-Site Energy Production: By producing electricity on-site, buildings can reduce their reliance on external energy providers, improving energy security.

Types of BIPV Systems

BIPV Roofing Systems

The use of PV in roofing systems can provide a direct replacement for batten and seam metal roofing, traditional 3-tab asphalt shingles, and ceramic tiles. Note that these types of installations require adequate ventilation to keep the cell temperatures cooler.

BIPV Facades

Solar cells can complement or replace traditional view windows or spandrel glass. While these installations are on vertical surfaces, which reduce the intensity of the solar insolation, the overall size of a facade can help compensate for the reduced power per unit area.

BIPV Skylights

Using PV for skylight systems can be both an economical use of PV and an interesting design feature. Just as with PV windows, the semi-transparency enables visual connections to the exterior environment while providing diffuse natural lighting.

BIPV Awnings

Photovoltaics may be incorporated into awnings or slightly sloped, saw-tooth canopy designs. Semi-transparent modules provide filtered sunlight underneath while affording additional architectural benefits such as passive shading.

Applications of BIPV in Modern Architecture

BIPV systems can be applied across various sectors, including:

Residential Buildings

Homeowners are increasingly adopting BIPV for energy savings and environmental benefits. BIPV systems are commonly integrated into homes, offering homeowners the ability to generate renewable energy while maintaining aesthetic appeal.

Integrated Facades: Residential facades with integrated solar panels can produce energy while enhancing the overall design of the home.
Solar Roof Tiles: These tiles blend seamlessly with traditional roofing materials, allowing homeowners to harness solar energy without compromising the building’s appearance.

Commercial Buildings

Large-scale commercial properties such as office buildings and shopping centers use BIPV to meet sustainability targets. Many commercial properties are adopting BIPV solutions to meet sustainability goals and reduce operational costs.

Retail Spaces: Stores can utilize BIPV to attract environmentally conscious consumers while also benefiting from lower energy bills.
Office Buildings: Integrating solar panels into the facade or roof can significantly reduce energy expenses, making buildings more sustainable and appealing to tenants.

Public Infrastructure

Government buildings, schools, and hospitals are incorporating BIPV to reduce energy costs and showcase environmental leadership.

Schools and Universities: Educational institutions use BIPV to educate students about renewable energy while reducing their carbon footprint and operational costs.
Government Buildings: Integrating BIPV into municipal buildings can set a precedent for sustainability in the community and serve as a model for future developments.

Urban Planning and Development

BIPV plays a significant role in sustainable urban development, contributing to energy generation in densely populated areas.

Solar Canopies: In urban areas, solar canopies can be implemented in public spaces, parks, and pedestrian zones, providing shade while generating renewable energy.
Green Roofs: BIPV can be integrated into green roofs, enhancing energy production while providing insulation and reducing urban heat.

Technical design options for BIPV Modules

The design of a BIPV module must balance aesthetics with maximizing electricity generation at a reasonable cost. While aesthetic preferences can be adjusted to improve power output or reduce costs, a strong understanding of the technical design options for various module components is essential. This section offers a general overview of these components and explores ways to achieve aesthetic designs beyond the standard module layout.

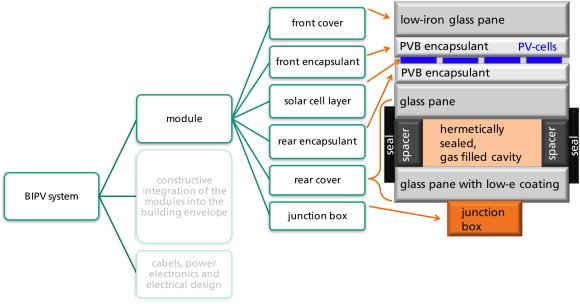

1. Generalized module configuration

PV modules consist of a solar cell layer, encapsulated between two layers, with a front and rear cover, often called a laminate. Standard modules include a frame for mounting and a junction box for electrical connections, which contains bypass diodes. In some cases, the junction box is omitted in device-integrated PV systems, and bypass diodes are integrated into the laminate. BIPV modules use more complex mounting systems for mechanical connection and stability, often for aesthetic reasons. Mounting systems can also provide insulation, ventilation, or cooling and may replace or partially replace the rear cover.

Curved modules are mainly used in vehicles but have some BIPV applications. Strong curvature may require smaller cells and can reduce power output due to uneven solar irradiation on the cells. Using separate impermeable cover layers is more cost-effective, as they protect against humidity, UV light, and mechanical stress.

2. Front and rear cover materials

PV module covers, for both the front and rear, can be made from different materials (e.g., glass front, polymer rear) and consist of external surfaces, bulk materials, and internal surfaces. These surfaces can be structured, coated, or finished for functional or aesthetic purposes. Coatings include sputtered, enamel, printed, varnish, and lacquer, which can reduce glare and improve reflection. Diffusing textures can further control glare without reducing transmission for electricity generation.

Rear covers can range from polymer films to complete glazing units. Functional coatings, like anti-reflective layers, are typically applied externally, while aesthetic coatings are internal for protection. Glass is the most common bulk material, offering transparency, stability, and durability, especially for BIPV modules, which often use laminated safety glass. Polymers, composites, and even metal layers are alternatives, especially for lightweight applications, with glass fibers combining stiffness with reduced weight. Additives in materials can enhance reflectance, color, or durability.

3. Embedding materials and additional interlayers

The embedding material in a solar module creates an airtight seal around the solar cells and adheres them to the cover material. It must accommodate different thermal expansion rates of materials while maintaining durability over the module’s lifespan. Common embedding materials include ethylene vinyl acetate (EVA) and polyvinyl butyral (PVB), with EVA being widely used for its low cost and PVB common in BIPV applications. Alternative methods, like casting resins or gases, are also used for embedding.

Additives can enhance the material’s UV stability or speed up processing, while aesthetic options include light-scattering particles or pigments to create color without reducing transparency. Additional interlayers, like colored nets, can be embedded to influence color, light diffusion, or reflection.

4. The PV cell layer and electrical module layout

The PV cell layer significantly influences the electricity yield, service life, and appearance of solar modules. There are two main categories of cell technologies: wafer-based (like crystalline silicon and tandem solar cells) and thin-film technologies (such as amorphous silicon, chalcogenide, organic, and perovskite solar cells). While thin-film technologies offer a uniform aesthetic, their market share is lower than that of crystalline silicon and is declining, limiting advancements in BIPV applications.

Current research focuses on various solar cell concepts, including amorphous silicon and tandem cells, but many are still academic or lack manufacturers for BIPV. The most commercially viable option currently is perovskite on silicon solar cells, which shows promise for future BIPV applications.

Key Projects in India of BIPV

1. Indira Paryavaran Bhawan, New Delhi

Indira Paryavaran Bhawan, home to India’s Ministry of Environment, Forest and Climate Change, is a notable example of BIPV, being the country’s first net-zero energy building. It has an annual energy consumption of 14.21 lakh kWh, balanced by on-site solar BIPV generation of 14.3 lakh kWh. The building not only produces sufficient renewable energy to meet its needs but also showcases the Indian government’s commitment to sustainable construction. Its design minimizes solar heat gain and improves energy efficiency while integrating solar panels into its facade and rooftops.

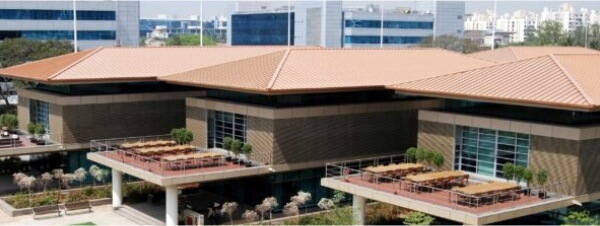

2. Suzlon One Earth, Pune

Suzlon Energy Limited’s headquarters, One Earth in Pune, is a notable example of sustainable architecture. It is LEED Platinum-rated and employs BIPV technology along with other renewable resources for its energy needs. The building features 128 BIPV panels, each with a capacity of 105 watts, totaling 13.44 kW. By integrating solar panels into its structure, One Earth achieves self-sustainability, serving as an excellent model for corporate offices adopting this technology.

3. Rajiv Gandhi International Airport, Hyderabad

Another notable example of using solar power, including BIPV systems, is the international airport of Hyderabad. This project is part of a larger plan within Indian airports to adopt greener technologies and reduce operational carbon footprints.

4. CeNSE Building, Indian Institute of Science, Bangalore

The Centre for Nano Science and Engineering (CeNSE) at the Indian Institute of Science (IISc) in Bangalore exemplifies the use of BIPV technology. This building not only integrates solar panels for energy generation but also functions as a research facility focused on developing new BIPV technologies. It represents a harmonious blend of architectural design, sustainability, and academic research.

5. Kolkata International Airport, Kolkata

The Netaji Subhas Chandra Bose International Airport in Kolkata, a key hub in Eastern India, utilizes BIPV to minimize its environmental impact. By installing solar panels on its roofs, the airport meets significant energy demands while reducing its carbon footprint. This initiative highlights the effective use of renewable energy technologies in large public infrastructures.

6. U-Solar CtrlS Data Center in Mumbai

In 2019, U-Solar Clean Energy Solutions Pvt. Ltd. installed India’s largest BIPV system on this data center, covering over 50,000 square feet of facade area with a capacity of about 1 MW.

The vertical building-integrated solar power (BIPV) system is estimated to prevent CO2 emissions equivalent to almost 7,000 trees per year.

7. Sahibabad Railway Station

Indian Railways and Central Electronics Limited have launched India’s first BIPV Solar Power Platform at Sahibabad Railway Station, featuring a 729 kW capacity powered by 1,620 high-efficiency solar panels. The growing adoption of BIPV technology across various sectors—government buildings, airports, educational institutions, and corporate headquarters—indicates a significant rise in its use as a sustainable energy generation and architectural design solution in the coming years.

Challenges in BIPV Adoption

Despite its numerous benefits, BIPV adoption faces several challenges, including:

High Initial Costs: The upfront costs of Building-integrated photovoltaics can be a deterrent for some developers, especially in regions with limited government incentives.
Technological Complexity: Building-integrated photovoltaics systems require specialized installation and maintenance, which may not be as widely available as traditional PV systems.
Regulatory Barriers: In some regions, building codes and regulations may not fully support Building-integrated photovoltaics, limiting its adoption.

Government Policies and Incentives

Governments worldwide are recognizing the importance of renewable energy in achieving sustainability goals. Many offer incentives such as tax credits, grants, and subsidies for Building-integrated photovoltaics installations. For instance, the European Union’s Renewable Energy Directive promotes the integration of renewable energy sources in new construction projects, supporting the growth of BIPV.

Future Prospects of Building-Integrated Photovoltaics

The future of Building-Integrated Photovoltaics looks promising as technological advancements continue to drive down costs and improve efficiency. Innovations in materials, such as perovskite solar cells and organic photovoltaics, hold the potential to make Building-Integrated Photovoltaics even more accessible and versatile. With growing awareness of climate change and the need for sustainable building practices, Building-integrated photovoltaics is set to play a key role in the future of architecture and energy generation.

Conclusion

Building-integrated photovoltaics represents the convergence of design, technology, and sustainability. As more developers and architects embrace renewable energy solutions, Building-Integrated Photovoltaics offers an opportunity to create energy-efficient buildings without compromising aesthetics. The shift toward integrating solar energy into the very fabric of architecture marks a significant step forward in achieving global sustainability goals.

Incorporating Building-Integrated Photovoltaics into construction projects not only enhances energy efficiency but also positions buildings at the forefront of green innovation. With ongoing advancements and government support, the future of Building-Integrated Photovoltaics promises to transform the landscape of modern architecture, one building at a time.
