Solar Carports

Power Generation Meets Parking Solutions

Transform your parking area into a revenue-generating asset. Generate clean energy while providing shade and EV charging for employees and visitors.

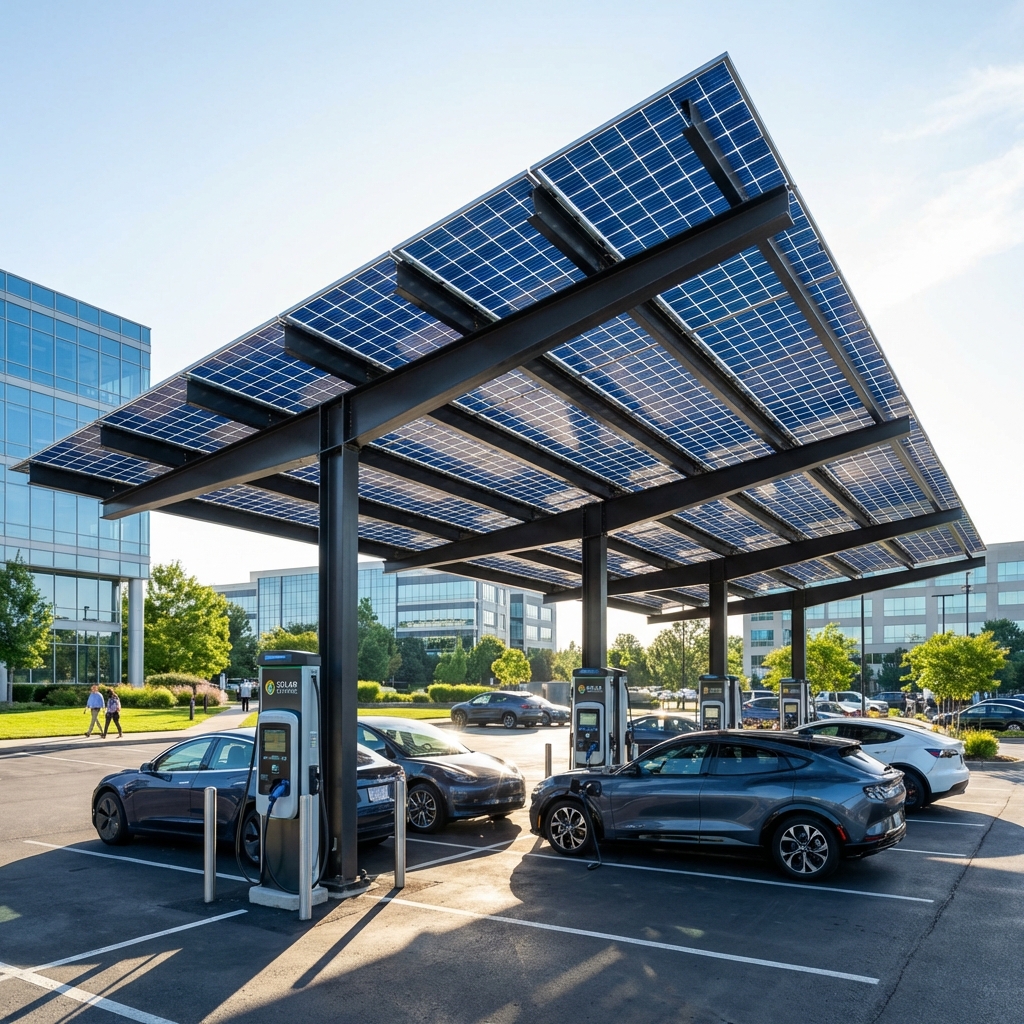

EV-Ready Solar Carport

Corporate Campus Installation

Commercial Scale

Mall & Retail Parking

Engineering Excellence

Structural Engineering & Design

Carport structures must withstand wind loads, dead loads from panels, and rely on proper soil bearing capacity. Our designs comply with Indian and international structural codes.

Key Design Considerations

Wind Load Analysis

Critical factor for open canopy structures exposed to wind uplift and lateral forces.

• Design wind speed: 39-55 m/s (IS 875)
• Terrain category assessment
• Gust factor calculations
• Panel clamping force design

Dead Load & Live Load

Structural weight plus panel weight distributed across columns and beams.

• Panel weight: 25-30 kg/m²
• Structure self-weight
• Maintenance access load
• Cable tray & equipment load

Foundation & Soil

Soil bearing capacity determines foundation type and column spacing.

• Soil investigation (SPT/DCPT)
• Safe bearing capacity check
• Foundation type selection
• Anti-corrosion measures

Carport Structure Types

Cantilever

Single-side columns for unobstructed parking

Max 6m span

T-Frame

Central column with dual-side cantilevers

Max 12m span

Full Frame

Columns on both sides for large spans

15m+ span

Waterproof Canopy

Sealed design with rainwater drainage

Premium option

Design Codes & Standards

Indian Standards

• IS 875 (Part 3) - Wind Loads
• IS 800 - Steel Structures
• IS 1893 - Seismic Design
• IS 456 - RCC Foundations
• IS 2062 - Structural Steel

International Standards

• IEC 62817 - Solar Tracker Design
• ASCE 7 - Wind/Seismic (US)
• EN 1991 - Eurocode Actions
• UL 2703 - Mounting Systems
• ISO 9001 - Quality Management

System Overview

Carport System Components

A complete solar carport system includes structure, panels, electrical, and optional EV charging.

Sunlight

Energy Source

Solar Canopy

DC Power

Inverter

DC → AC

EV Charger

Optional

Building/Grid

Power Usage

Steel Structure

Hot-dip galvanized steel or aluminum frame engineered for local wind/seismic loads.

25+ year lifeCorrosion resistantCustom heights

Solar Panels

High-efficiency bifacial modules to maximize generation from canopy area.

540W+ modulesBifacial optional25-year warranty

Inverter System

String inverters with monitoring capabilities and grid connectivity.

98%+ efficiencyRemote monitoringString level data

EV Chargers

AC or DC charging stations with smart load balancing.

7-150 kW optionsOCPP compliantApp enabled

Cabling & Protection

Weather-resistant cabling with proper earthing and lightning protection.

IP67 ratedFire resistantLightning arrestors

Metering & SCADA

Smart metering and monitoring for real-time performance tracking.

Bi-directionalCloud dashboardAlerts & reports

Advantages

Benefits of Solar Carports

Dual-Use Space

Generate solar power while providing covered parking

2xLand Utilization

EV Charging Ready

Integrate electric vehicle charging infrastructure

100%Green Charging

Weather Protection

Shield vehicles from sun, rain, and hail damage

15°CCooler Cabin

Branding Opportunity

Visible sustainability statement for your organization

ESGCompliance

No Roof Modification

Ideal when rooftop installation is not feasible

0%Roof Risk

Cooler Parking

Reduce heat island effect in parking areas

40%Heat Reduction

Options

Choose Your Configuration

From basic solar shade to complete EV mobility hubs.

Basic Carport

Solar Only

Cost-effective solar generation with premium parking shade.

Steel/aluminum structure
Optimized panel layout
Standard inverters
Net metering ready

Best for: General parking

Popular

EV-Ready Carport

Charging Infrastructure

Solar carport with integrated EV charging stations.

AC/DC chargers
Smart load management
User authentication
Payment integration

Best for: Corporate campuses

Premium EV Hub

Full Ecosystem

Complete mobility hub with battery storage and fast charging.

DC fast chargers
Battery buffer storage
Solar maximization
Fleet management

Best for: Highway/public stations

Applications

Ideal Use Cases

Corporate Offices

Employee parking with sustainability goals

Shopping Malls

Covered parking + EV charging for customers

Hotels & Resorts

Premium guest amenity with green credentials

Hospitals

Staff & visitor parking with clean energy

Airports

Long-term parking with solar revenue

Educational Campuses

Teaching sustainability by example

How It Works

Our Process

Site Survey

Parking layout, soil testing, electrical assessment

Design

Structural engineering, panel layout, EV placement

Approvals

Building permits, DISCOM, fire NOC

Foundation

Civil works, foundation installation

Installation

Structure erection, panel mounting, electrical

Commissioning

Testing, grid sync, EV charger activation
